Element Structure

HIGH RESISTANCE STRUCTURE

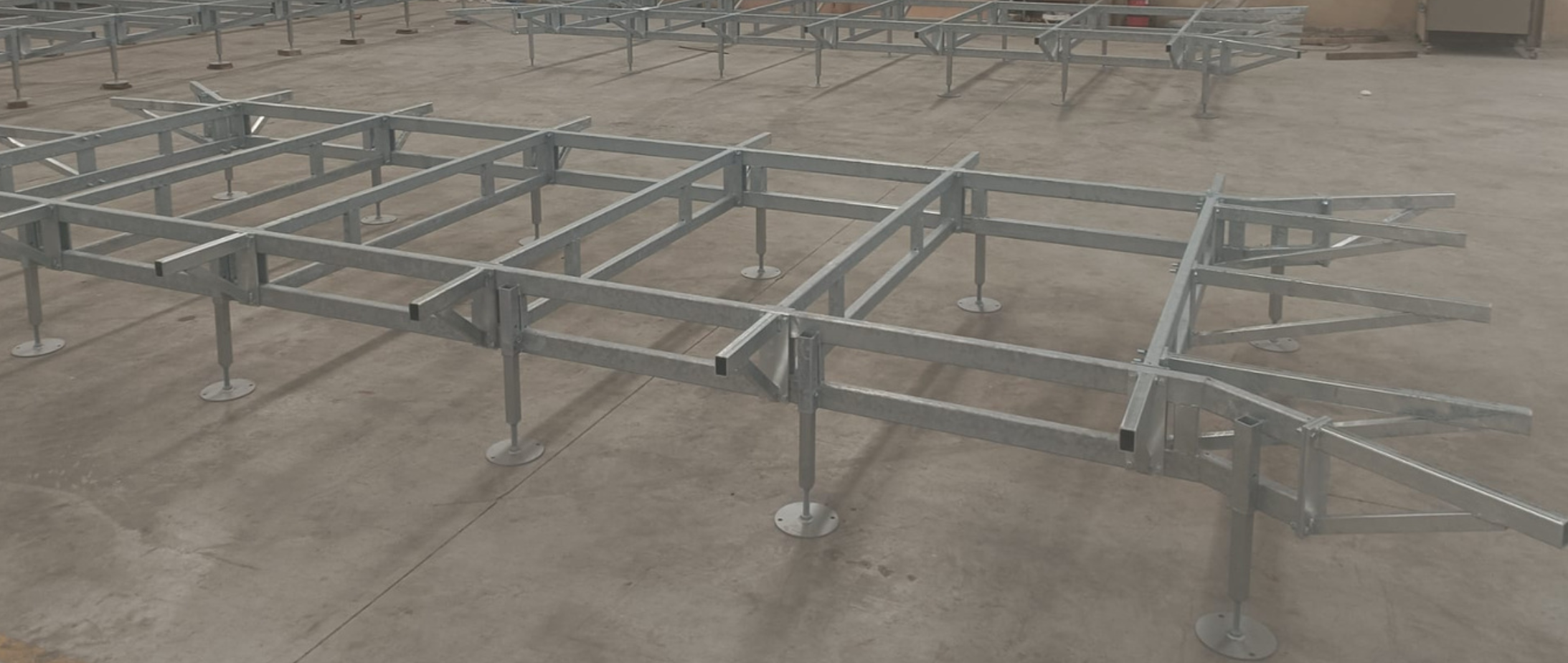

Structure

The LUXEGATE construction system is a solution built 100% from hot-dip galvanized steel, with high structural resistance and durability, providing excellent strength and stability. Manufactured in the factory following strict quality control processes, this system enhances construction quality and eliminates the cracks and unevenness typically found in traditional construction methods.

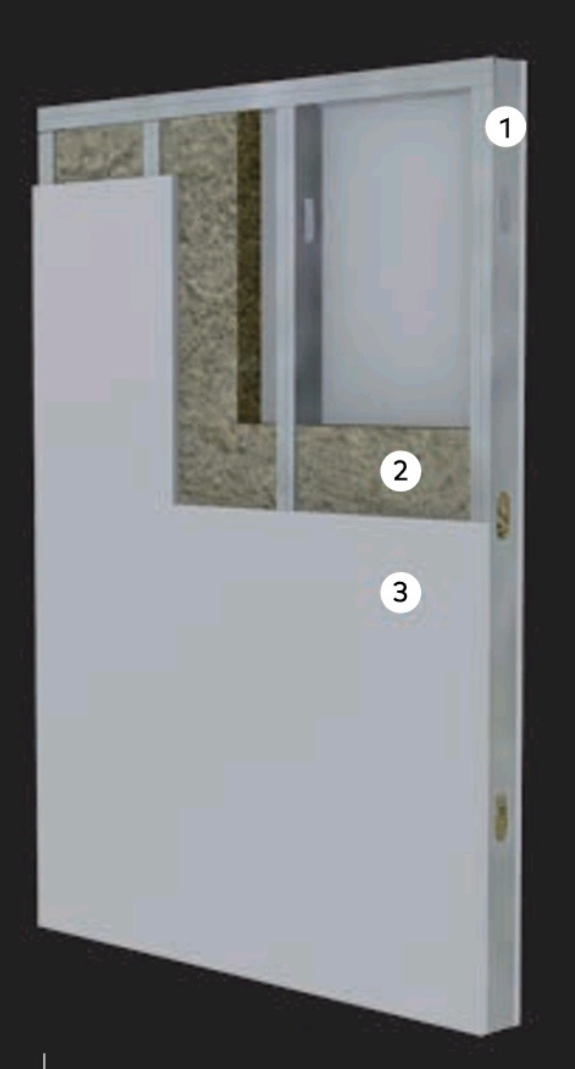

Internal Walls

Internal Walls
  1. Metal profile 50x50x1.5
  2. Rock wool 50mm (70 kg/m³)
  3. Plasterboard 1.5 cm

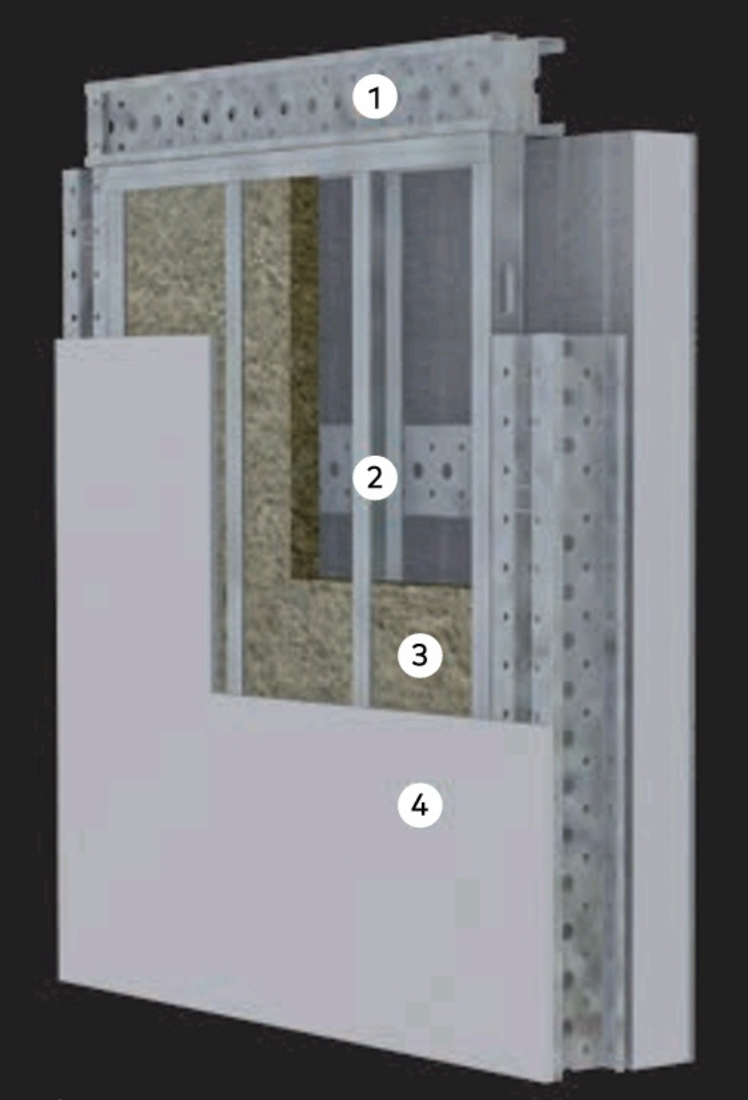

Internal Wall Facade

Internal Walls Facade
  1. Metal profile
  2. Air chamber 110 mm
  3. Rock wool 50mm
  4. Plasterboard

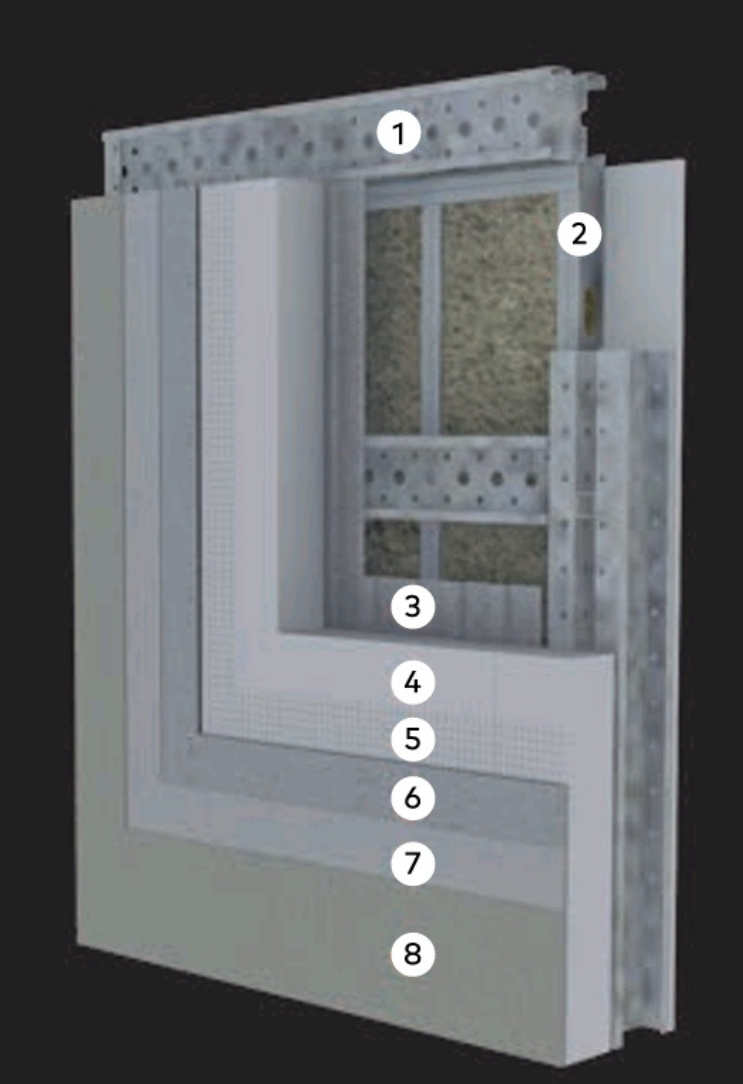

External Wall Facade

External Walls Facade
  1. Metal profile 50x50x1.5
  2. Rock wool 50mm (70 kg/m³)
  3. Profiled metal sheet
  4. Thermal insulation 100mm
  5. Metal sheet
  6. EPS insulation board 20mm
  7. Styrofoam 80 mm
  8. Capotto

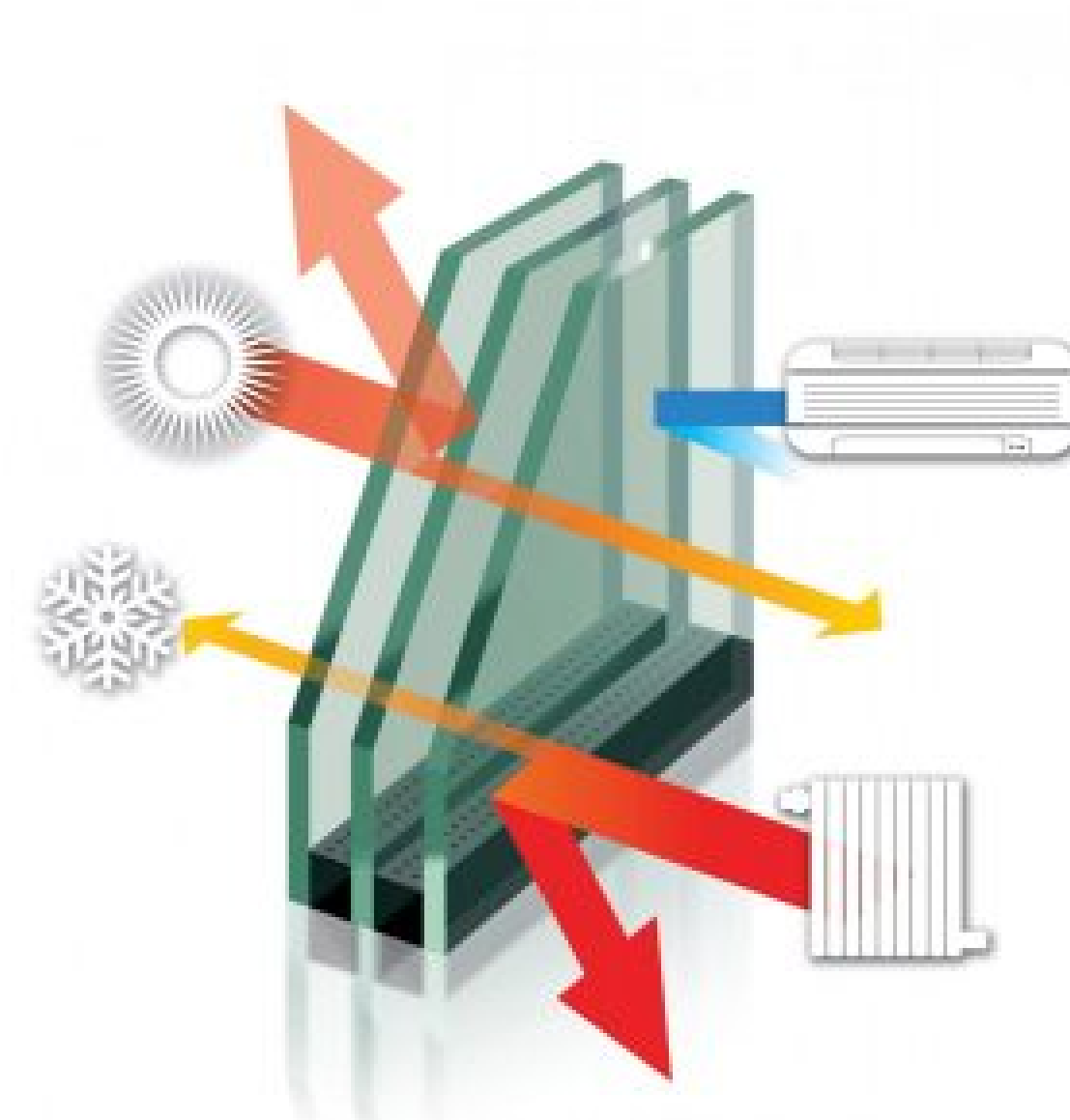

Windows

Windows Blinds
  • Triple glazing
  • Electric exterior blinds

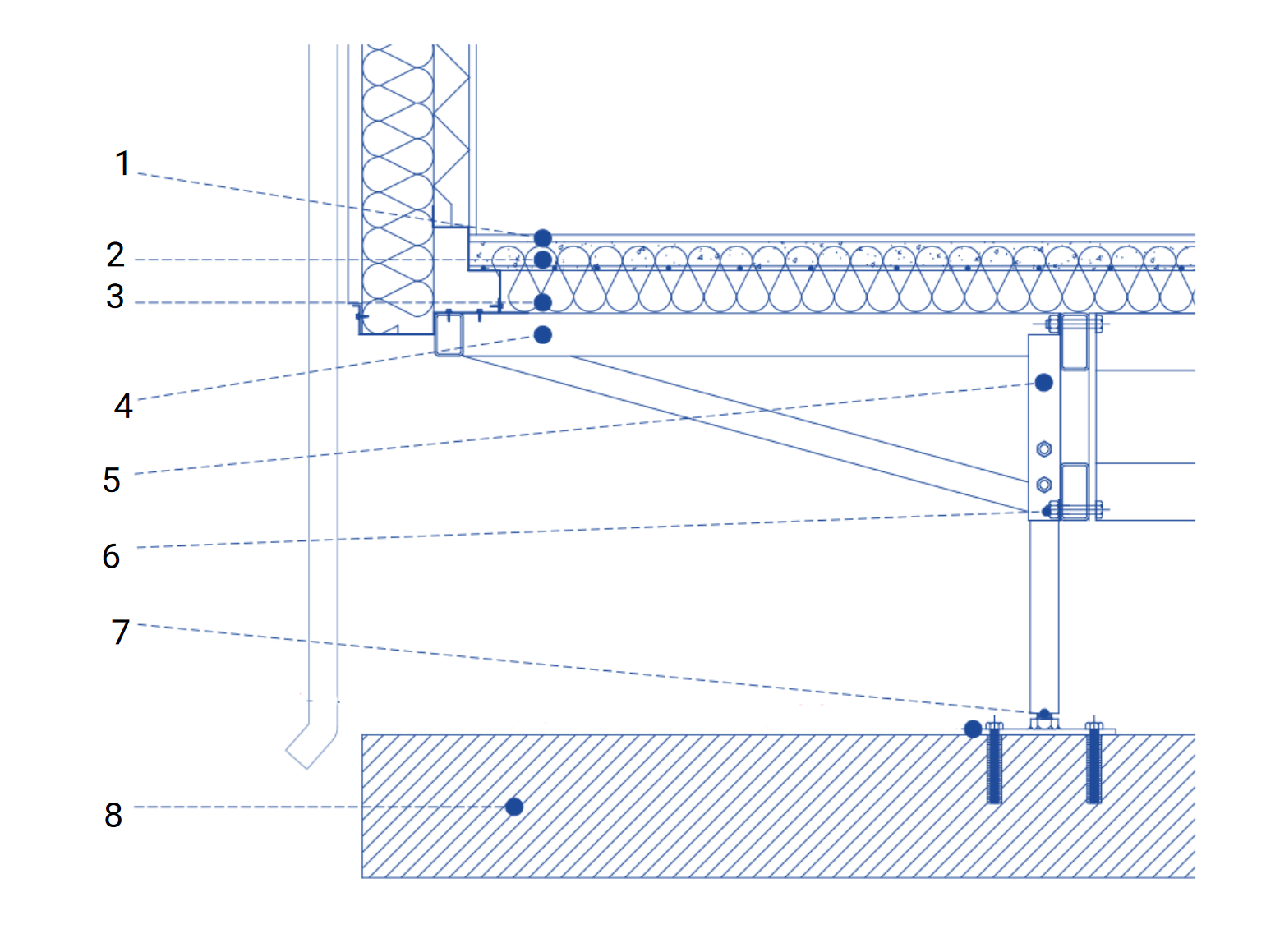

Floor

Floor
  1. Final floor layer, with underfloor heating
  2. Reinforced concrete slab ⌀6// 10
  3. Sandwich panel 100mm
  4. Metal profile 60x40x3
  5. Metal profile 45x45x2
  6. M 12 bolt
  7. Baseplate adjustment bolt
  8. Concrete slab according to the stability project

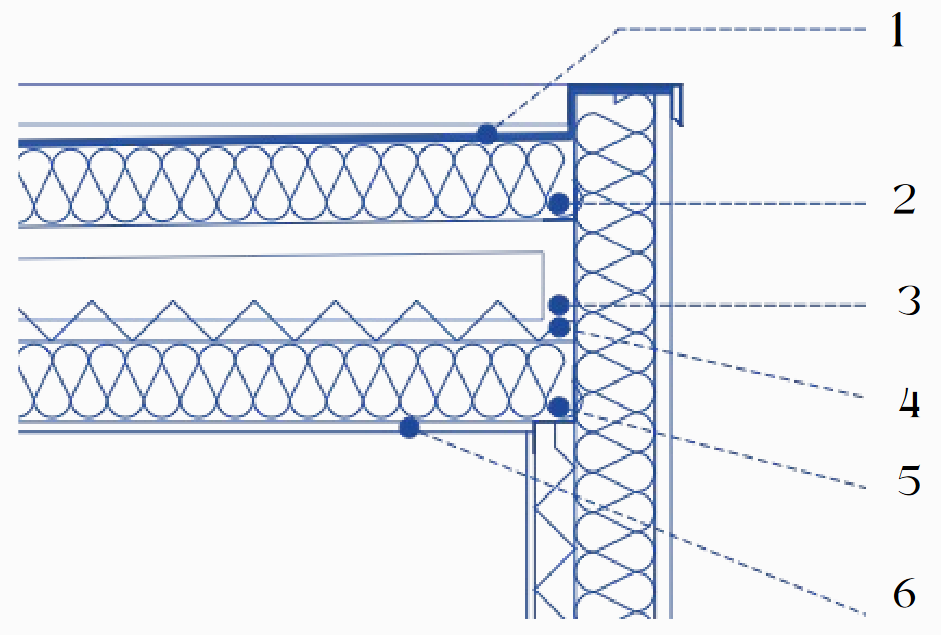

Ceiling

Ceiling
  1. Asphalt layer double: FV40 + PY40 + Mineral protection
  2. Sandwich panel 100 mm
  3. Metal profile 40x30x1.5
  4. Rock wool 50mm
  5. Sandwich panel 100 mm
  6. Plasterboard
